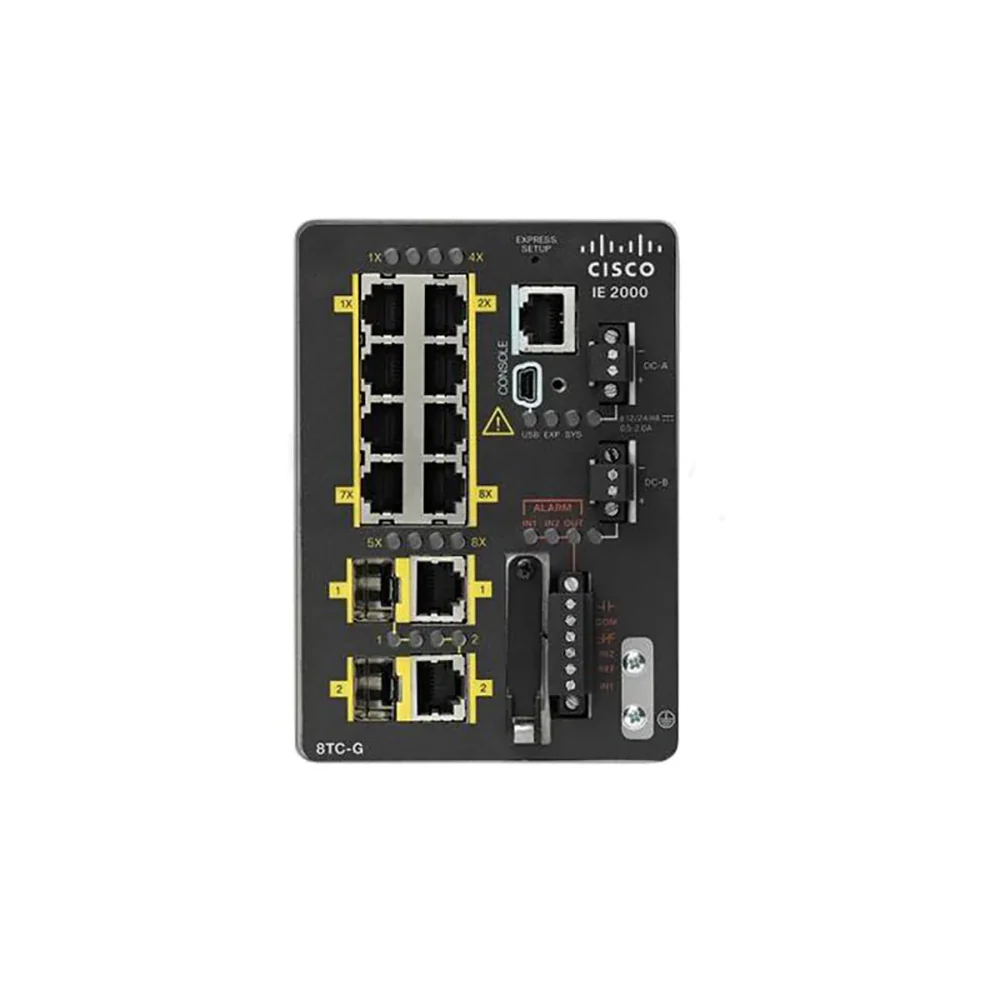

Cisco IE2000-8TC-G-E Rugged LAN Base Switch

The Cisco® Industrial Ethernet 2000-8TC-G-E is a compact, ruggedized LAN Base switch engineered for demanding U.S. industrial networks—from Chicago transit control centers to Texas oilfields.

It delivers eight auto-sensing 10/100 Mbps RJ-45 downlink ports plus two 100/1000 Mbps combo SFP/RJ-45 uplinks in a fanless, convection-cooled chassis.

With dual-input DC power, alarm I/O and a DIN-rail mount, it combines enterprise-grade security and Cisco Resilient Ethernet Protocol (REP) for sub-second failover in harsh environments

Overview

Highlights

Ports & Uplinks
8 × 10/100 Mbps RJ-45 downlinks + 2 × 100/1000 Mbps combo SFP/RJ-45 uplinks in a single 10-port chassis.
Compact Rugged Design
IP30-rated metal housing, fanless convection cooling, and extended –40 °C to +75 °C operating range for reliable performance in extreme U.S. facilities.
Switching Performance
Up to 7.6 Gbps of switching bandwidth and a 3.8 Gbps forwarding bandwidth with wire-speed 5.66 Mpps packet handling.
High Availability & Resiliency
Cisco REP ring protocol and Media Redundancy Protocol (MRP) deliver sub-second network failover for mission-critical applications.
Enterprise-Grade Security
802.1X port-based authentication, DHCP snooping, Dynamic ARP Inspection, IP Source Guard, port security, SSHv2, SNMPv3, BPDU Guard, RADIUS/TACACS+.
Flexible Management
Zero-touch express setup via DHCP, Web Device Manager, Cisco Catalyst Center, CLI, Telnet/HTTPS, SNMP, and USB/SD flash for rapid U.S. site provisioning.
Industrial Protocol & Standards
EtherNet/IP, PROFINET, IEEE 1588v2 PTP for synchronized automation; UL/CSA 60950-1, EN 60950-1, CB IEC 60950-1, NEMA TS-2, Marine DNV, Substation KEMA, Railway EN 50155, IP30 certified.

Recommended Accessories

Accessory	Category	Description
PWR-IE50W-AC=	Power Supply	50 W AC/DC (100–240 VAC/1.25 A or 125–250 VDC/1.25 A); no PoE support
PWR-IE50W-AC-L=	Hazard-Location Power Supply	50 W AC (100–240 VAC/1.2 A/50–60 Hz); IP20 rated for non-hazardous zones
SD-IE-1GB=	Removable Storage	1 GB ruggedized SD memory card for configuration and firmware
STK-RACK-DINRAIL=	Mounting Hardware	19″ DIN-rail mount kit for industrial racks and cabinets

Comparison with Similar Models

Feature	IE-2000-4TC-G-E	IE-2000-8TC-G-E	IE-2000-16TC-G-E
Ports & Uplinks	4 × 10/100 RJ-45 + 2 × 100/1000 combo	8 × 10/100 RJ-45 + 2 × 100/1000 combo	16 × 10/100 RJ-45 + 2 × 100/1000 combo
Switching Capacity	7.6 Gbps	7.6 Gbps	7.6 Gbps
Forwarding Rate	5.66 Mpps	5.66 Mpps	5.66 Mpps
Power Consumption	9.5–15 W	12.5–20 W	21–30 W
Operating Range	–40 °C to +75 °C; IP30	–40 °C to +75 °C; IP30	–40 °C to +75 °C; IP30
Ideal Use Case	Compact I/O aggregation at remote sites	Mid-density industrial edge aggregation	High-density industrial backbone access

Specifications

Parameter	Specification
Product Code	IE-2000-8TC-G-E
Feature Set	Cisco IOS LAN Base
Downlink Ports	8 × 10/100 Mbps RJ-45
Uplink Interfaces	2 × 100/1000 Mbps SFP/RJ-45 combo
Maximum Switching Bandwidth	7.6 Gbps full-duplex
Maximum Forwarding Bandwidth	3.8 Gbps
Forwarding Rate	5.66 Mpps (64-byte packets)
Packet Buffer	2 MB
MAC Address Table	8,000 entries
VLANs	Up to 1,005
NAT Entries	128 translation entries
IPv4 / IPv6 Routes	3,500 / 1,750 routes
DRAM / Flash / SD Card	256 MB DRAM with ECC; 64 MB on-board Flash; optional 1 GB SD card
Alarm I/O	2 dry-contact inputs; 1 Form-C output relay
Console Ports	Mini-USB and RS-232 RJ-45
Power Input	Dual-input: 100–240 VAC/1.25 A or 125–250 VDC/1.25 A
Power Consumption	12.5–20 W (excluding PoE)
Dimensions (H × W × D)	5.1″ × 3.6″ × 5.26″ (130 × 91.4 × 134 mm)
Weight	3.45 lb (1.56 kg)
Operating Temperature	–40 °C to +75 °C
Operating Humidity	0–100% condensing
Certifications & Compliance	UL/CSA 60950-1, EN 60950-1, CB IEC 60950-1, NEMA TS-2, Marine DNV, Substation KEMA, Railway EN 50155, ISO 12944-6, IP30, EtherNet/IP, PROFINET
